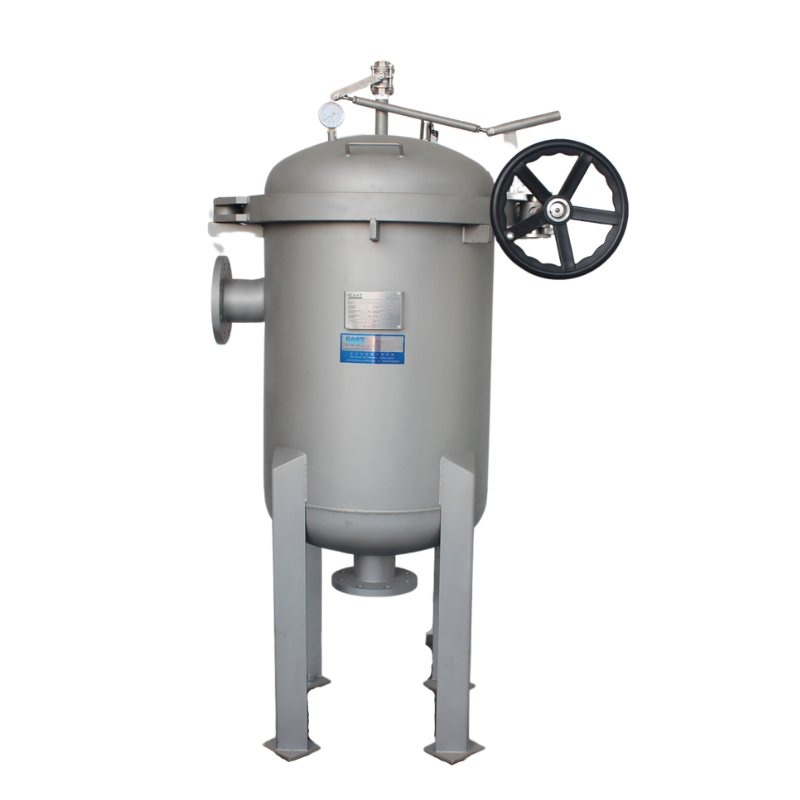

HVMF High Flow Quick Open Multiple Bag Filter
| Parameter | Specification |
| Material | SUS304,SUS316L |
| Interface type | flange |
| Applicable bags | 2#filter bag |
| Design pressure | 10bar |
| Design flow | 60-960 cubic meter/hour |
| Surface treatment | Sandblasting or Polishing |

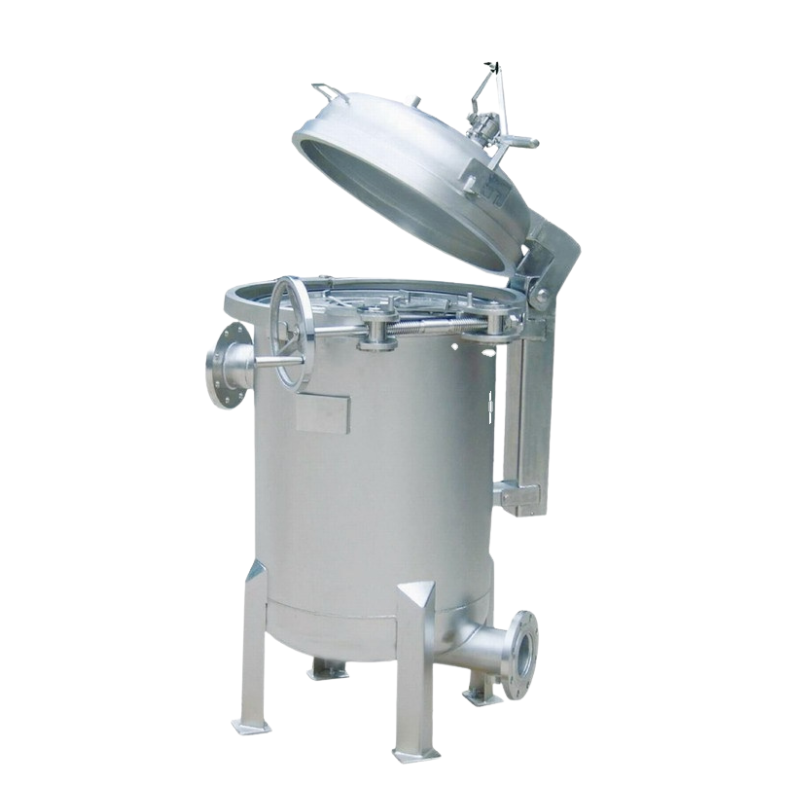

Adopt vertical opening design, quick operation ,bolt combination toeconomical perfomance. | |

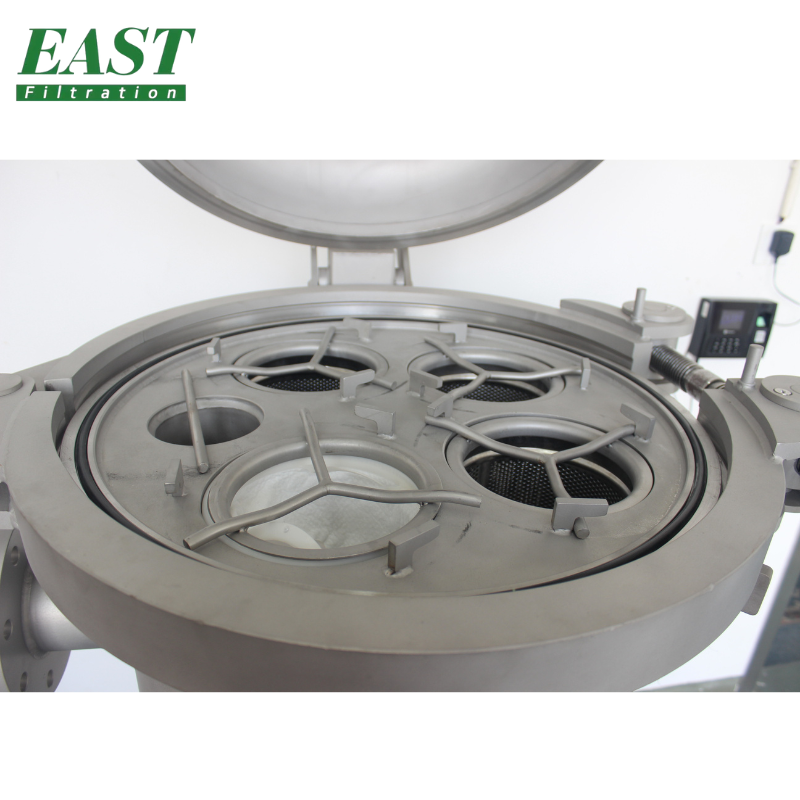

| Keeping 3 points balance to fasten bag as a way to avoid sideleakage. | |
| From 3 to 24 bags for optional choice. | |
| Suitable for large flow rate and large particle field. | |

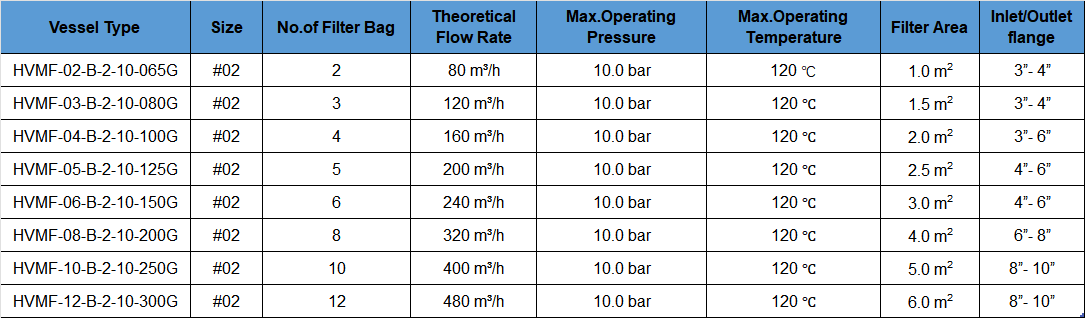

Technical Parameter
Ready to upgrade your filtration system? [Click here to contact us] for full specifications and a quick fast response.
Optimized for Industrial Filtration Needs
The HVMF High Flow Quick Open Multiple Bag Filter housing is engineered specifically for industrial users requiring rapid, large-scale liquid filtration. Its
vertical opening and bolt-clamped design facilitate quick bag changes, reducing downtime and enhancing throughput efficiency. Targeted at industries
processing bulk liquids, this system supports 2# bags ranging from 3 to 24 units, making it adaptable for processes that demand scalable filtration
capacity. Its robust stainless steel construction ensures durability in harsh environments, appealing to engineers and procurement teams seeking
reliable and maintenance-friendly filtration solutions.
Advanced Engineering Ensures High Performance
Constructed from high-grade SUS304 and SUS316L stainless steel, the housing accommodates flow rates from 60 to 960 cubic meters per hour with a

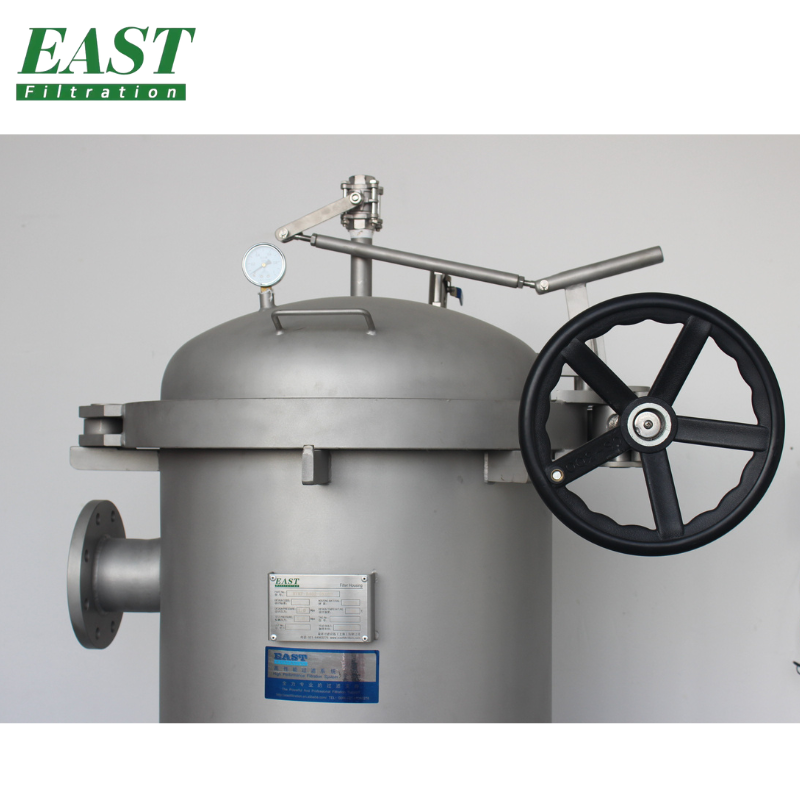

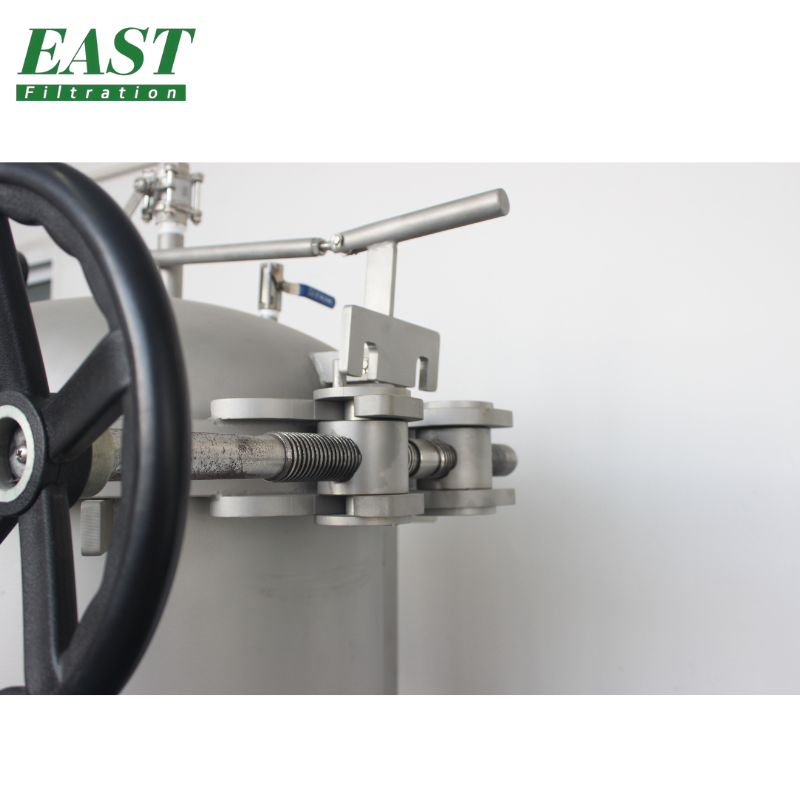

maximum design pressure of up to 10 bar. The vertical quick-open mechanism provides secure, leak-proof sealing via bolt clamps, allowing for safe,
efficient filtration operations. Finishing options include sandblasting or polishing, enhancing corrosion resistance and compliance with hygiene standards.

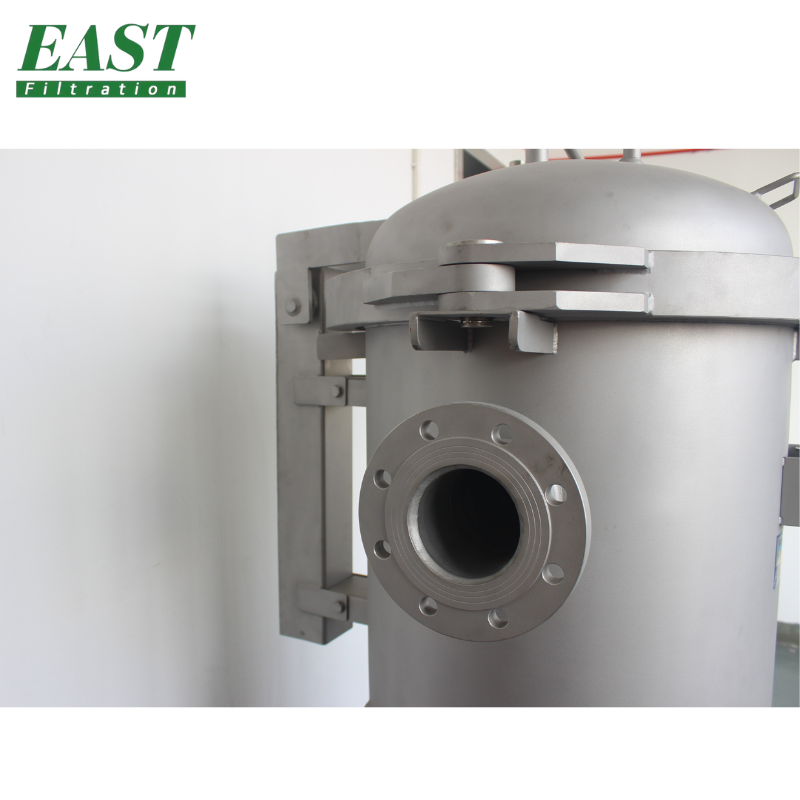

This multiple bag filter incorporates modular flange interfaces for seamless integration with existing piping systems, offering precision manufacturing that
supports consistent filtration quality and operational reliability.
Versatile Applications Across Industrial Sectors
This multiple bag filter is versatile across industries such as chemical processing, pharmaceuticals, food and beverage manufacturing, and water
treatment. It effectively integrates into high-flow liquid purification lines where rapid bag replacement is critical for continuous production. The design’s
scalability accommodates facility expansions and pilot line trials, delivering measurable ROI through minimized downtime and improved process control.
By providing a reliable, leak-proof air filter alternative within liquid filtration setups, it supports compliance with stringent industrial filtration standards and
enhances overall operational efficiency.
Use to
Usage Scenarios
Industrial Bulk Liquid Filtration Upgrades
In chemical manufacturing plants requiring high-volume liquid filtration, the HVMF multiple bag filter serves as a vital upgrade component. It replaces
outdated filter housings to provide rapid bag changes with minimal interruption, critical in continuous production lines. The robust SUS316L construction
meets corrosive chemical compatibility standards, while the leak-proof bolt seal ensures containment integrity. System integration through standardized
flange connections allows existing piping assemblies to adapt without excessive rework. This solution ensures compliance with quality control protocols
and supports scale-up initiatives with flexible bag quantity options, maintaining uninterrupted filtration performance at industrial scales.
Pharmaceutical and Food Processing Line Integration
The HVMF housing is particularly suited for pharmaceutical and food beverage facilities where hygiene standards and quick maintenance are paramount.
Its polished stainless steel surface finish complements stringent sanitation requirements, while the quick-open vertical design facilitates rapid filter bag
replacement during scheduled downtimes. Supporting a range of 2# filter bags in a multiple bag filter configuration, the unit adapts to varying flow
demands common in pilot production or scalable batch processing. Its reliable sealing mechanism and corrosion-resistant materials ensure product purity
and process consistency. This enables seamless integration within existing filtration workflows, enhancing overall system efficiency and regulatory
compliance.
FAQ
1.What materials are used in the HVMF High Flow Quick Open Multiple Bag Filter?
The HVMF uses durable stainless steel, specifically SUS304 and SUS316L, ensuring corrosion resistance and longevity. These materials guarantee
robustness in demanding industrial applications, supporting reliable operation of the multiple bag filter system.
2.Can I customize the bag capacity and design pressure for this filter housing?
Yes, the HVMF supports multiple bag configurations from 3 to 24 bags (2# size), allowing scalable flow capacity up to 960 m³/h and a maximum design
pressure of 10 bar. Customization aligns with your operational needs to optimize the multiple bag filter performance.
3.How should the HVMF filter be installed for optimal operation?
The filter housing uses flange interfaces for secure mounting. Its vertical quick-open design facilitates easy bag replacement. Installation should ensure
compatibility with your piping system and sufficient accessibility for maintenance to uphold the integrity of your bag filter system.
4.What logistics and delivery considerations apply when ordering this filter?
Delivery times depend on order specifications and location. EAST Filtration prioritizes prompt processing to reduce downtime. We provide support from
model selection to after-sale service for smooth integration of the quick open multiple bag filter into your production line.
